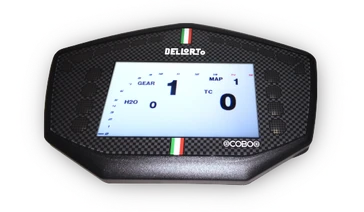

DoDash

The new dashboard has been conceived as a plug-and-play device driven by the ECU DoPe2.0, without any dashboard setting.



MAIN FEATURES:

  • latest color TFT display;
  • built-in GPS device
  • gearshift flash and flag indicators in compliance with MotoGP technical regulation
  • up to 8 analog inputs
  • CAN line connection to the ECU DoPe2.0



Download
Dashboard 16003 Tech Specifics - DRAWING
Technical Specification of the NEW dashboard for World GP.
16003_DASHBOARD_MOTO3_MY_2016.pdf
Adobe Acrobat Document 838.3 KB
Download
Dashboard 16003 Tech Specifics
Technical Specification of the NEW dashboard for World GP - moto3 class
Dashboard_DELLORTO_Tech_Spec_R4_2017-06-
Adobe Acrobat Document 770.3 KB
Download
Dashboard 16003 (DoDash) HANDBOOK
DoDash_HANDBOOK_July2017.pdf
Adobe Acrobat Document 1.4 MB
Download
ACQ TABLE >>> GPS channels (FW 17.004 and onwards)
M3_DOPE2_16_08_v02.mat
exe File 25.4 KB
